EcoSmart Fire - Firebox 1100CV Curved Fireplace Insert
£4,095.00
Sale price
£4,095.00
Regular price
FREE UK MAINLAND SHIPPING OVER £500
ENRG Fuel
The Right Fuel for Your EcoSmart Fire
To ensure top performance and safety, e-NRG bioethanol is the only fuel approved for your EcoSmart Fire. Order directly from Instyora for swift home delivery.
Clean, Chimney-Free Heat
e-NRG leaves behind no soot, smoke, or ash. It produces only gentle warmth, water vapour, and trace carbon dioxide, keeping all the heat inside your room without the need for a flue.
Vibrant Golden Flame
Specially formulated to deliver a rich, natural orange flame that easily rivals a traditional wood fire.
Pure and Odourless
Refined using high-grade botanical ingredients to ensure a fresh, clean burn without harsh chemical smells.
Longer Burn Time
Rigorously tested to burn more slowly and efficiently, giving you maximum warmth per bottle.
Built-in Safety
Fitted with an integrated nozzle flame arrester to prevent flashback and make refuelling safe and simple.
EcoSmart Fire Included Accessories
Warranty Information
EcoSmart Warranty
Shipping & Delivery
Delivery Information
We offer free delivery to UK mainland addresses on all
orders over £500. Orders under £500 are delivered for a flat fee of £14.99.
When will my order arrive?
Most orders are delivered within 3-5 working days. Your item is dispatched directly from the manufacturer or their dedicated courier, tracked and handled with care all the way to your door.
Keeping you informed
If an item is made to order or temporarily out of stock,
or during particularly busy periods, delivery may take a little longer. If that happens, we'll contact you personally with an updated delivery date, so you're never left guessing.
Free delivery applies to most UK mainland postcodes. Some remote areas may be excluded. Please contact us before ordering if you're unsure.

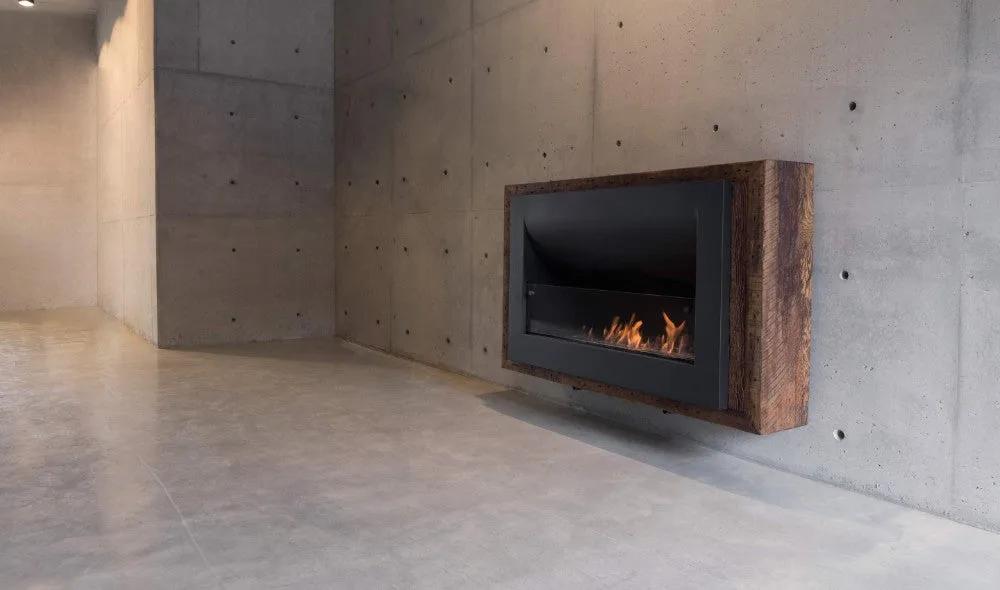

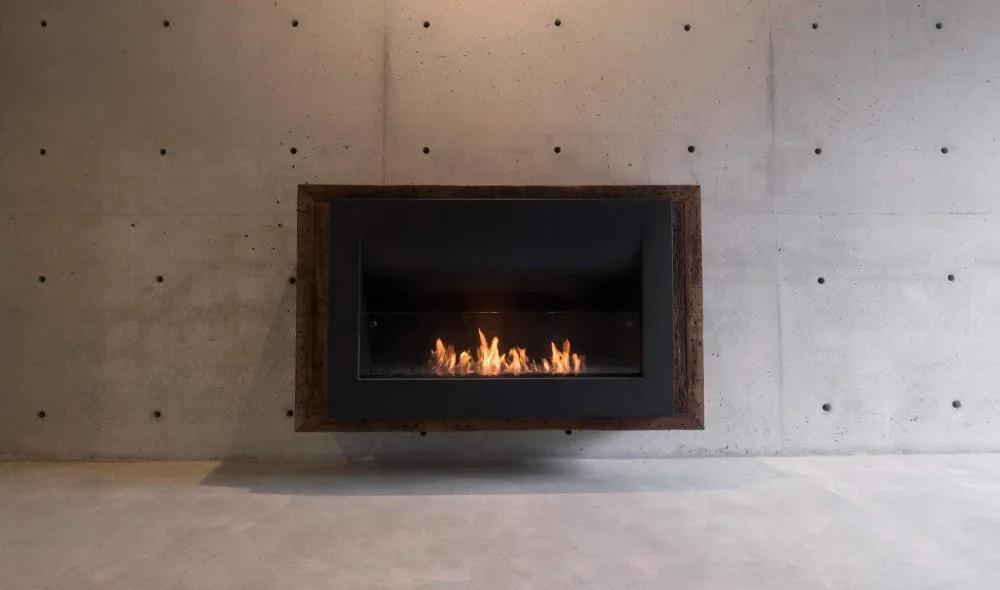

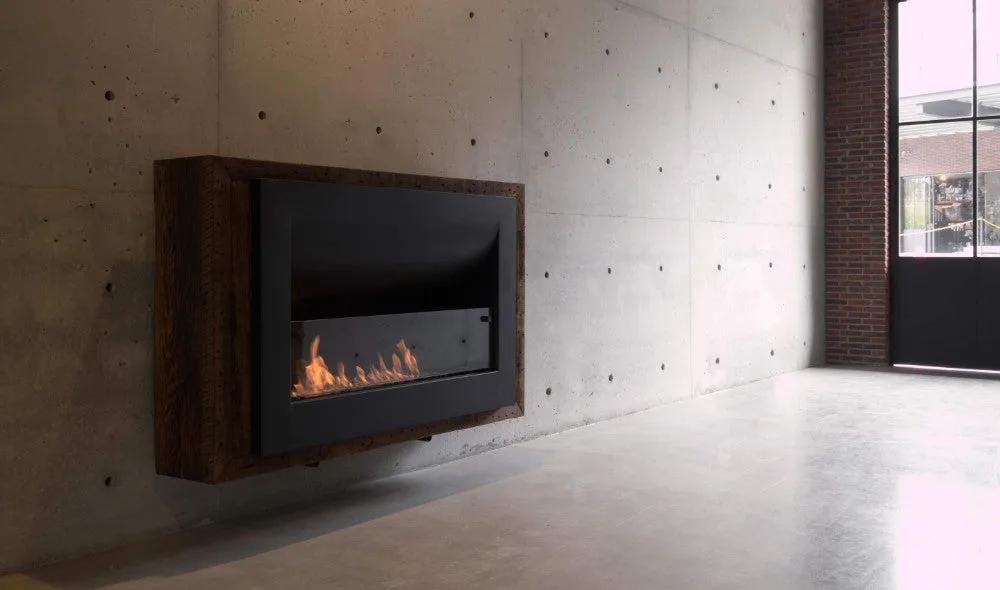

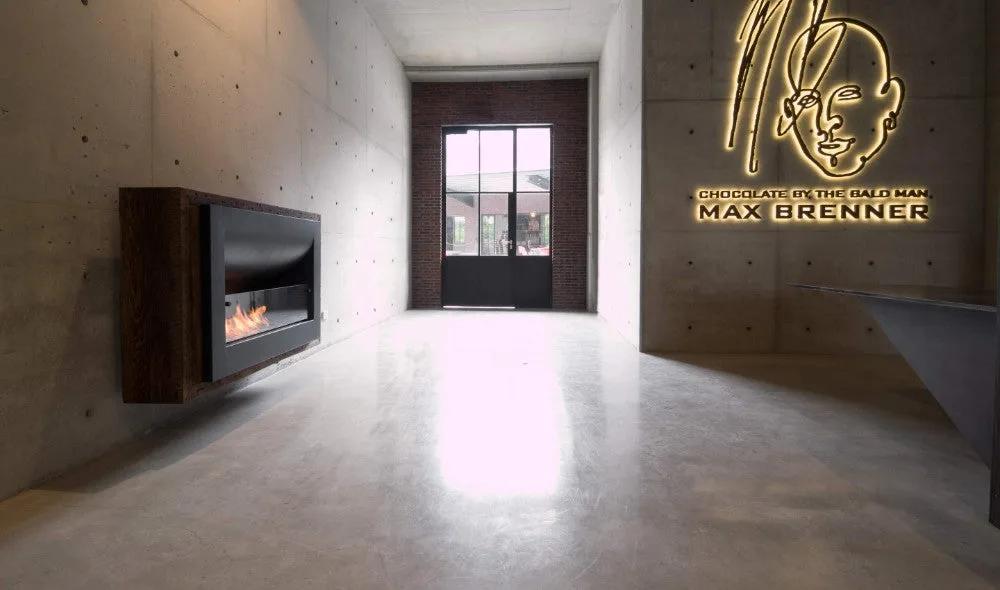

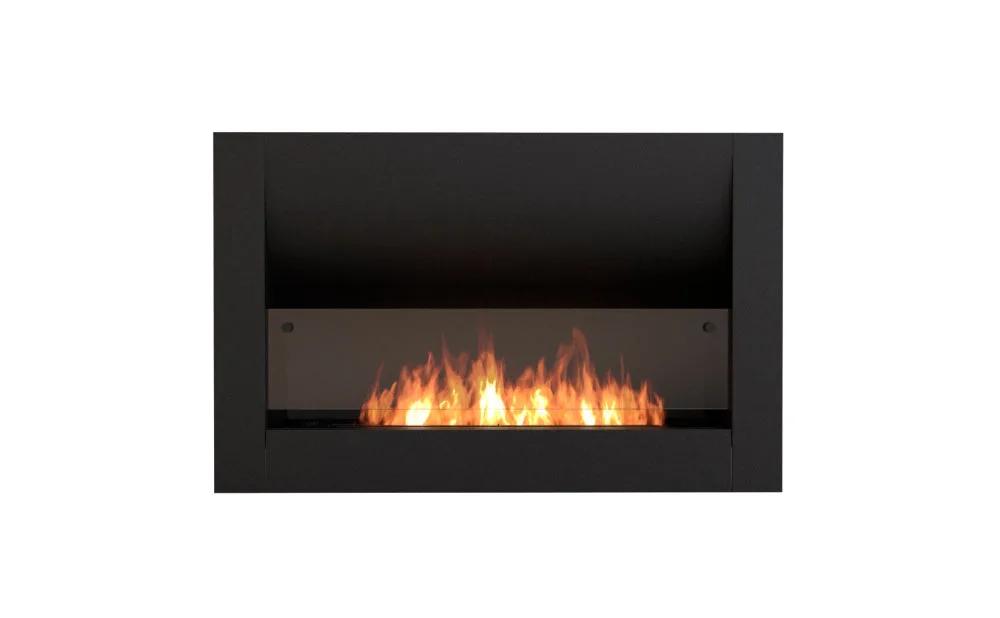

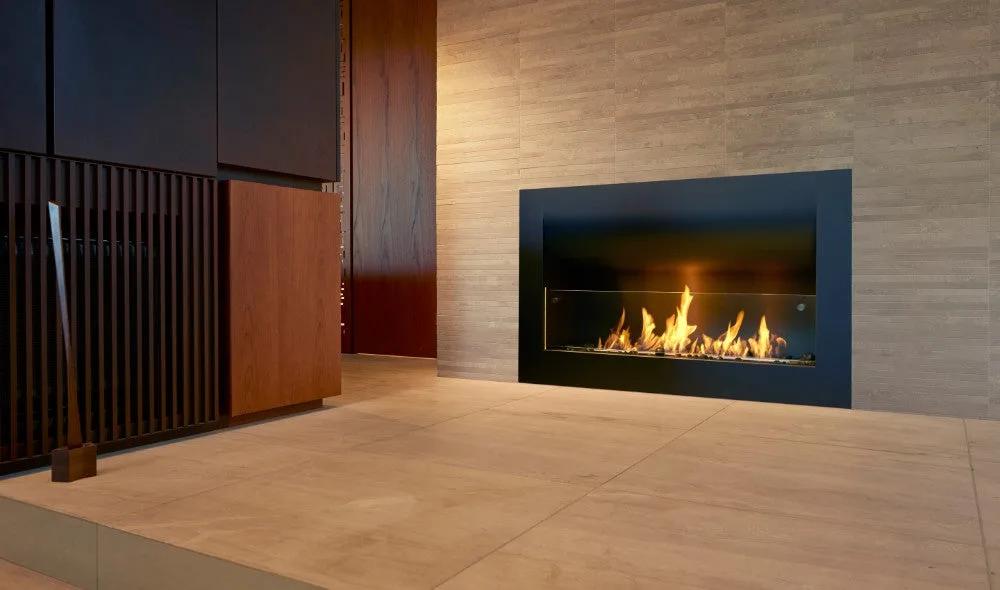

EcoSmart Fire - Firebox 1100CV Curved Fireplace Insert
Uniquely curved ethanol fireplace insert
A softer silhouette. A striking flame. The EcoSmart Firebox 1100CV brings a distinctive curved profile and real bioethanol firelight to your interior. Powered by the XL900 burner, it creates an inviting focal point that complements both contemporary finishes and traditional fireplace settings. Choose a stainless steel or black burner finish to complete your look.
Manufacturer approved surround for the BS EN16647 Compliant XL900 burner.
Key Features
Designed for flexibility
Our Curved Fireplace Inserts can be seamlessly installed into an existing wall with only minimal structural adjustments. Its smart design also allows you to update the wall finish at any time, without damaging the wall surface. Perfect for evolving interiors and hassle-free renovations.
Single room application
Single Sided fireplaces feature one open side - view the flame from the front.
Curvaceous Design
Unique curved feature radiates heat outward for full enjoyment and maximum fuel efficiency.
Premium materials
Constructed from mild steel with zinc-sealed, high-temperature powder-coat, toughened low-iron glass, and Grade 304 stainless steel burners, Curved Fireplaces is engineered for lasting performance and sophisticated style.
Design flexibility
Designed for suitable indoor spaces, subject to the manufacturer’s installation requirements. Whether integrating into marble, timber, concrete, or custom millwork, select finishing materials and clearances in accordance with the installation instructions for the 1100CV.
Streamlined installation
No gas connection, electrical supply, chimney or flue is required. Plan the installation in accordance with the manufacturer’s instructions, and confirm any applicable building or approval requirements for your project.
Space-conscious installation
Requires minimal wall cavity preparation, making it perfect for retrofit projects in existing homes where structural modifications must be kept to an absolute minimum.
Indoor suitability
The Firebox 1100CV is designed for indoor application. Its listed minimum room volume is 110m³. Confirm that your intended space meets the manufacturer’s room-size, ventilation and installation requirements before purchase.
No chimney or flue required
Enjoy real firelight powered by e-NRG bioethanol, without a chimney or flue. Install and operate in accordance with the manufacturer’s instructions, including ventilation requirements. No gas or electrical utility connections are required.
Installation and operation guidance
Refer to the Firebox 1100CV installation instructions and the XL900 burner operating manual for model-specific installation, fuel handling, lighting and safety requirements.
Global compliance
These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.
Specifications
| Specification | Detail |
|---|---|
| Application | Indoor |

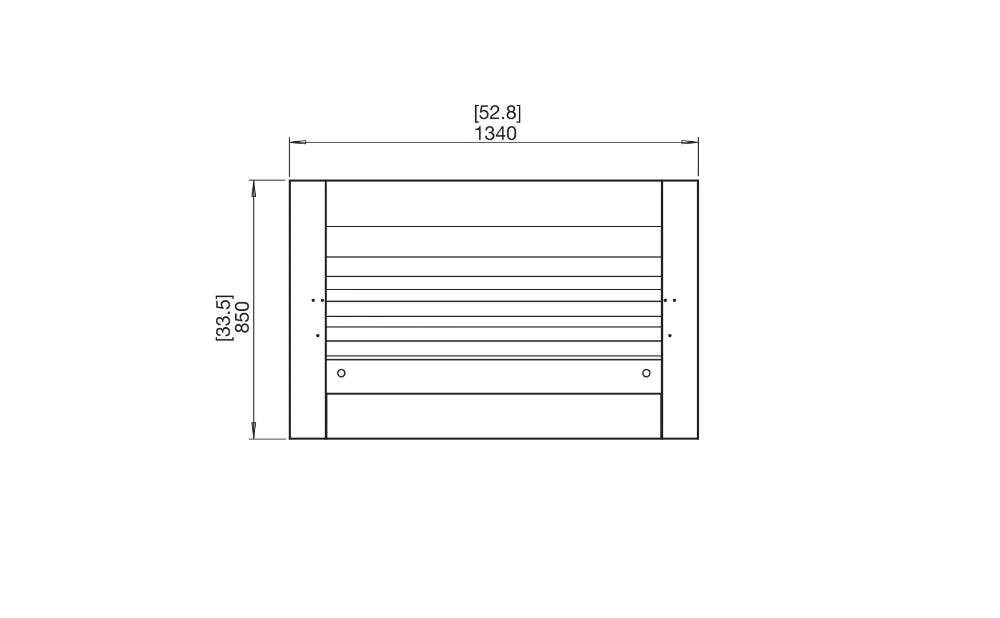

| Model Width | 1,340 mm [52.8 in] |
| Model Height | 850 mm [33.5 in] |

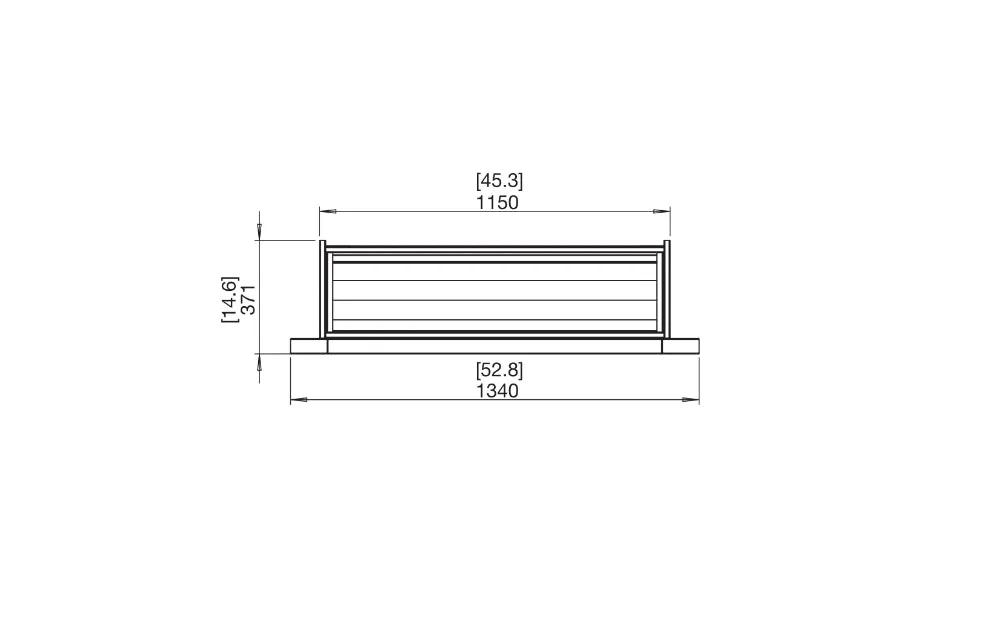

| Model Depth | 371 mm [14.6 in] |
| Viewing Area Width | 1,340 mm [52.8 in] |
| Viewing Area Height | 850 mm [33.5 in] |
| Weight | 61.5 kg [135.6 lb] |
| Surround Material | Mild Steel (Zinc Sealed, High-Temp Powder Coat) |

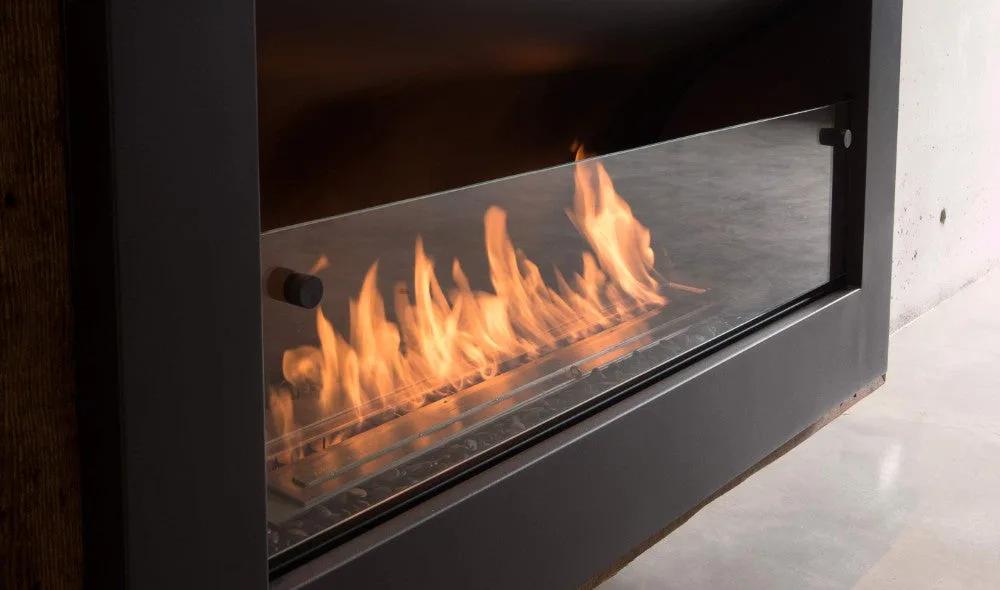

| Burner Material | Grade 304 Stainless Steel (Optional Black Ceramic Coating) |
| Fire Screen | Toughened Glass |
| Model Colour | Black |
| Burner Colour Options | Stainless Steel / Black |
Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.
Efficiency & Burner Information
| Specification | Detail |
|---|---|
| Compatible Burner | XL900 |
| Volume Capacity | 9 L / 2.4 gal |
| Thermal Output | 15,000 BTU/h / 15.83 MJ/h / 4 kW |
| Burn Time | 8–13 h per 9 L [2.4 gal] |
| Fuel Consumption (Max) | 0.8 L/h / 0.21 gal/h |
| Heats on Average | 60 m² / 646 ft² |
| Minimum Room Size | 110 m³ / 3,885 ft³ |
Manufacturer approved surround for the BS EN16647 Compliant XL900 burner.
