EcoSmart Fire - Firebox 1400CV Curved Fireplace Insert
£4,545.00
Sale price
£4,545.00
Regular price
FREE UK MAINLAND SHIPPING OVER £500
ENRG Fuel
The Right Fuel for Your EcoSmart Fire
To ensure top performance and safety, e-NRG bioethanol is the only fuel approved for your EcoSmart Fire. Order directly from Instyora for swift home delivery.
Clean, Chimney-Free Heat
e-NRG leaves behind no soot, smoke, or ash. It produces only gentle warmth, water vapour, and trace carbon dioxide, keeping all the heat inside your room without the need for a flue.
Vibrant Golden Flame
Specially formulated to deliver a rich, natural orange flame that easily rivals a traditional wood fire.
Pure and Odourless
Refined using high-grade botanical ingredients to ensure a fresh, clean burn without harsh chemical smells.
Longer Burn Time
Rigorously tested to burn more slowly and efficiently, giving you maximum warmth per bottle.
Built-in Safety
Fitted with an integrated nozzle flame arrester to prevent flashback and make refuelling safe and simple.
EcoSmart Fire Included Accessories
Warranty Information
EcoSmart Warranty
Shipping & Delivery
Delivery Information
We offer free delivery to UK mainland addresses on all
orders over £500. Orders under £500 are delivered for a flat fee of £14.99.
When will my order arrive?
Most orders are delivered within 3-5 working days. Your item is dispatched directly from the manufacturer or their dedicated courier, tracked and handled with care all the way to your door.
Keeping you informed
If an item is made to order or temporarily out of stock,
or during particularly busy periods, delivery may take a little longer. If that happens, we'll contact you personally with an updated delivery date, so you're never left guessing.
Free delivery applies to most UK mainland postcodes. Some remote areas may be excluded. Please contact us before ordering if you're unsure.

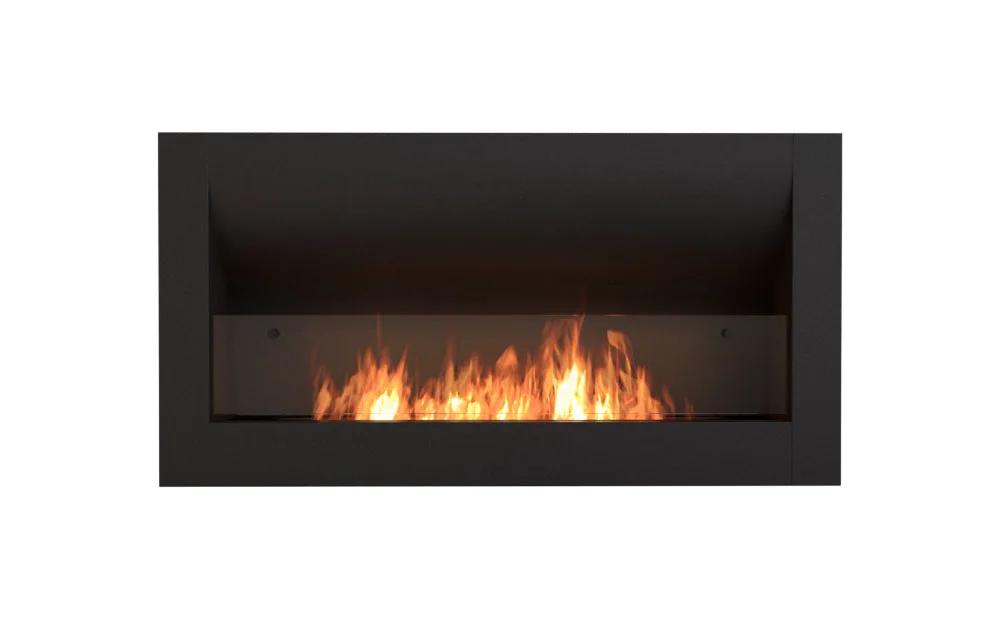

EcoSmart Fire - Firebox 1400CV Curved Fireplace Insert
Uniquely curved ethanol fireplace insert
Sculpted curves. Captivating firelight. The EcoSmart Firebox 1400CV brings a distinctive architectural silhouette to your space, pairing its curved profile with a real bioethanol flame powered by the XL1200 burner. Create an inviting centrepiece for conversation, entertaining and quieter evenings, with a stainless steel or black burner finish to complement your design.
Manufacturer approved surround for the BS EN16647 Compliant XL1200 burner.
Key Features
Designed for flexibility
Our Curved Fireplace Inserts can be seamlessly installed into an existing wall with only minimal structural adjustments. Its smart design also allows you to update the wall finish at any time, without damaging the wall surface. Perfect for evolving interiors and hassle-free renovations.
Single room application
Single Sided fireplaces feature one open side - view the flame from the front.

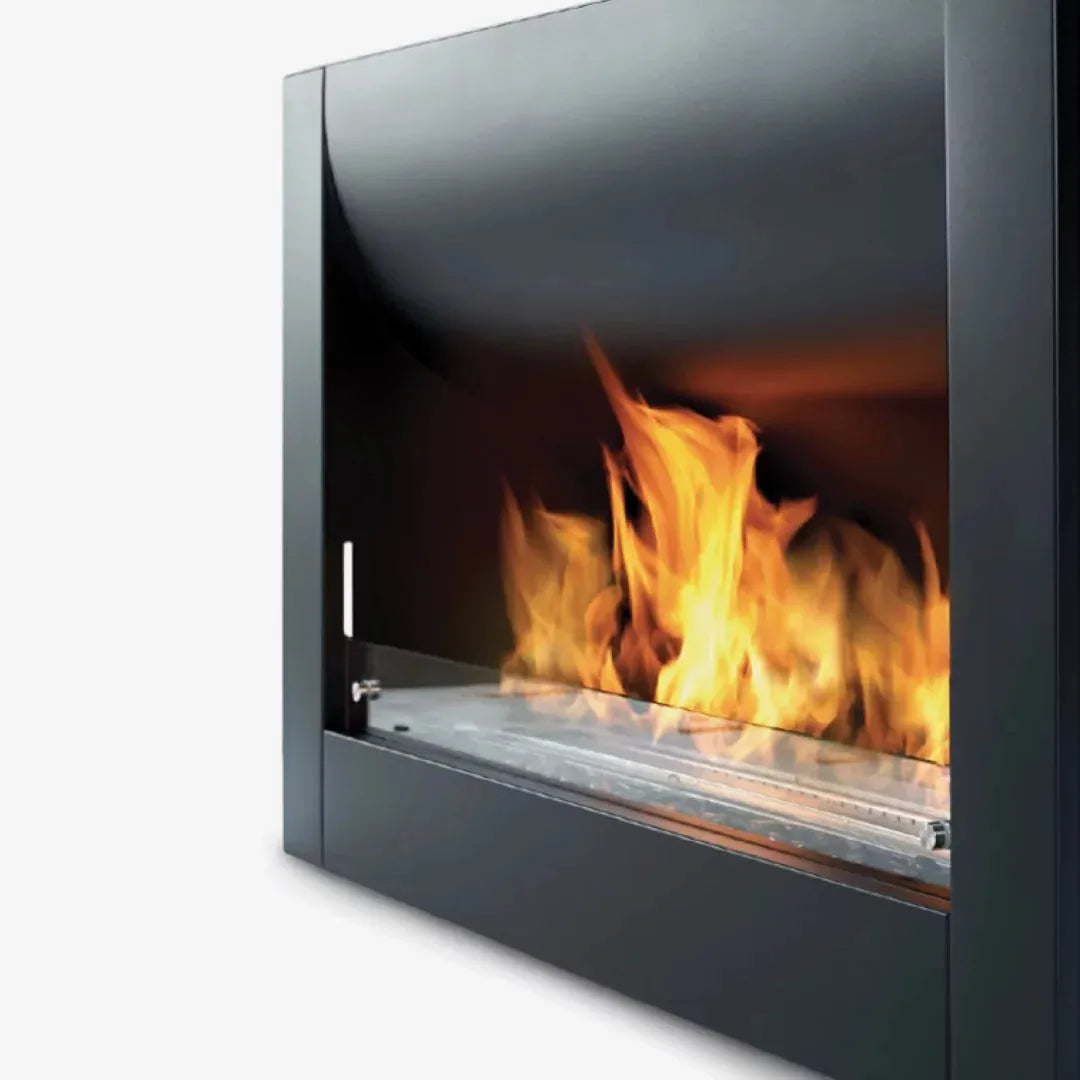

Curvaceous Design
Unique curved feature radiates heat outward for full enjoyment and maximum fuel efficiency.
Premium materials
Constructed from mild steel with zinc-sealed, high-temperature powder-coat, toughened low-iron glass, and Grade 304 stainless steel burners, Curved Fireplaces is engineered for lasting performance and sophisticated style.
Design flexibility
Designed for suitable spaces, subject to the manufacturer’s installation requirements. Whether integrating into marble, timber, concrete, or custom millwork, select finishing materials and clearances in accordance with the installation instructions for the 1400CV.
Streamlined installation
No gas connection, electrical supply, chimney or flue is required. Plan the installation in accordance with the manufacturer’s instructions, and confirm any applicable building or approval requirements for your project.
Space-conscious installation
Requires minimal wall cavity preparation, making it perfect for retrofit projects in existing homes where structural modifications must be kept to an absolute minimum.
Room-size and installation requirements
For indoor installations, the Firebox 1400CV has a listed minimum room volume of 115m³. Confirm that your intended space meets the manufacturer’s room-size, ventilation and installation requirements before purchase.
No chimney or flue required
Enjoy real firelight powered by e-NRG bioethanol, without a chimney or flue. Install and operate in accordance with the manufacturer’s instructions, including ventilation requirements. No gas or electrical utility connections are required.
Installation and operation guidance
Refer to the Firebox 1400CV installation instructions and the XL1200 burner operating manual for model-specific installation, fuel handling, lighting and safety requirements.
Global compliance
These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.

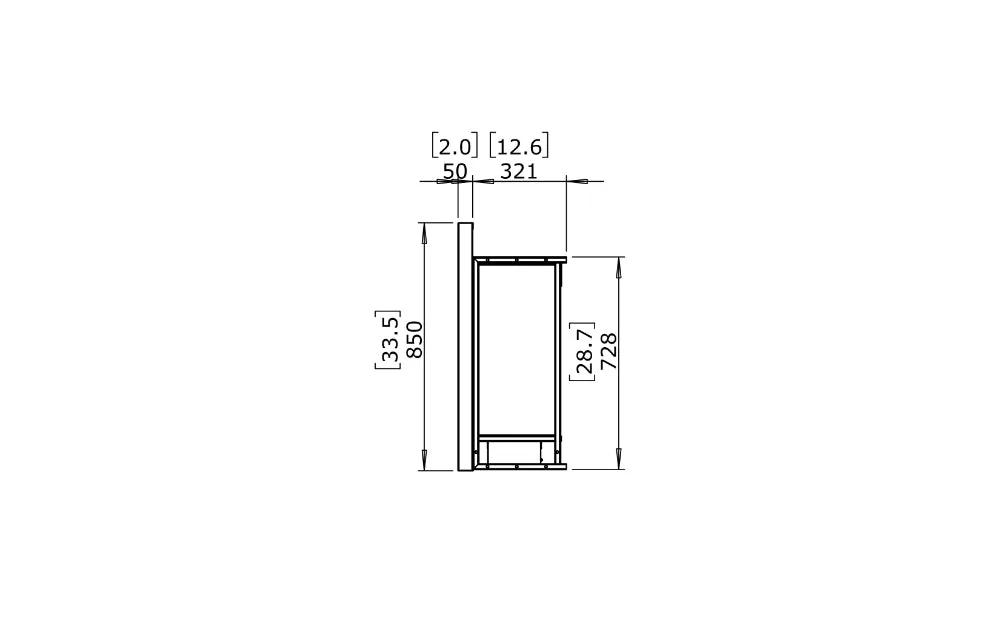

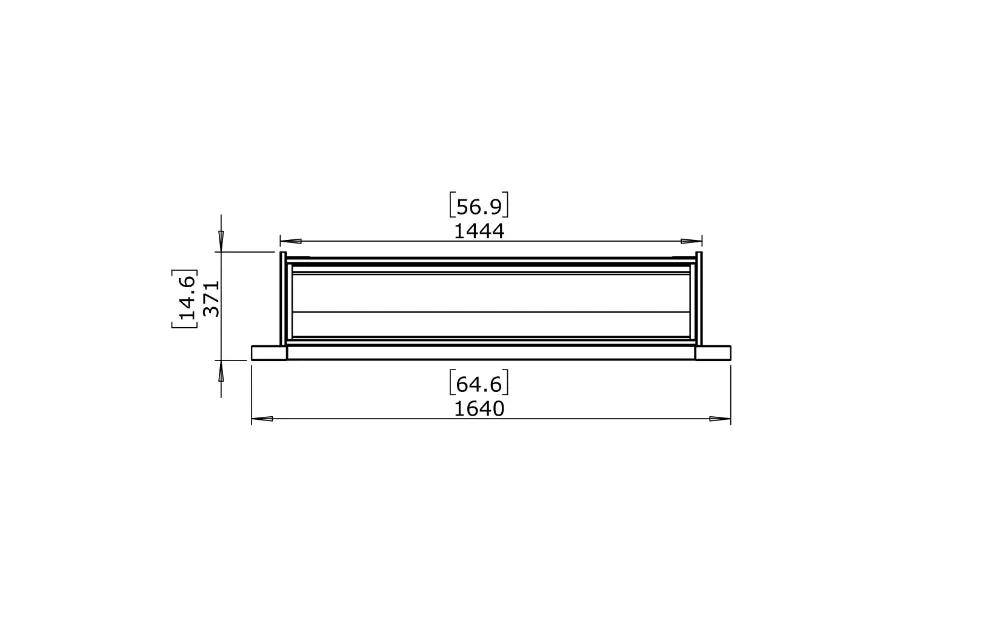

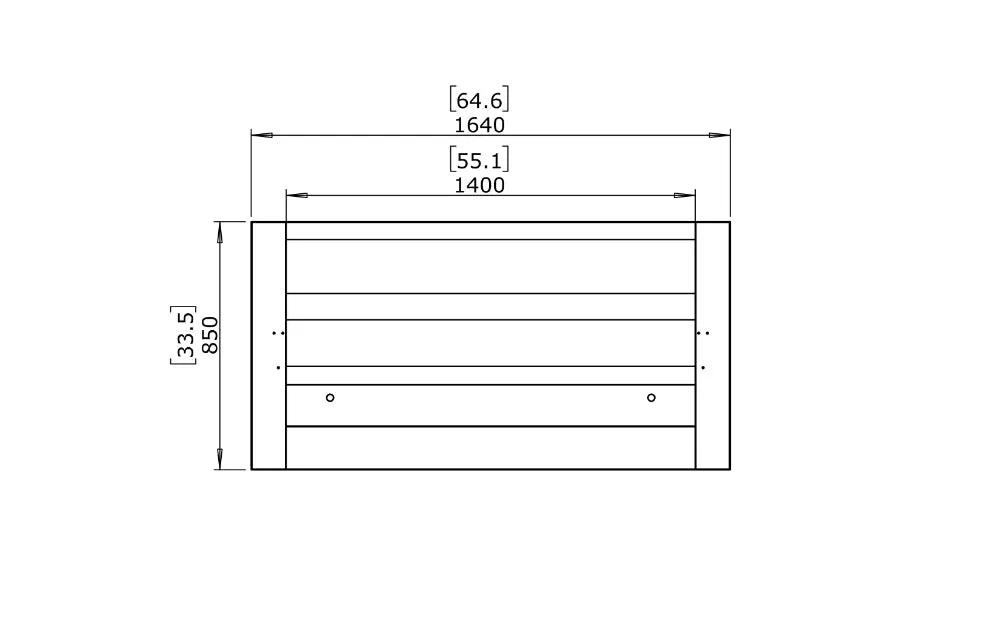

Specifications
| Specification | Detail |
|---|---|
| Application | Indoor & Outdoor |
| Weight | 71.70 kg [158 lb] |
| Model Width | 1,640 mm [64.6 in] |
| Model Depth | 372 mm [14.6 in] |
| Model Height | 850 mm [33.5 in] |
| Viewing Area Width | 1,640 mm [64.6 in] |
| Viewing Area Depth | 321 mm [12.6 in] |
| Viewing Area Height | 850 mm [33.5 in] |
| Materials | Mild Steel, Toughened Glass |
| Model Colour | Black |
| Burner Colour Options | Stainless Steel / Black |
Manufacturer approved surround for the BS EN16647 Compliant XL1200 burner. Glass Charcoal included. This model is manufacturer approved for use with the UL Listed XL1200 Burner. Choose the stainless steel or black burner finish using the Burner Finish option.
Burner Efficiency (XL1200)
| Specification | Detail |
|---|---|
| Compatible Burner | XL1200 |
| Capacity | 10 L [2.6 Gal] |
| Heats on Average | 65 m² [700 ft²] |
| Minimum Room Size | 115 m³ [4,061 ft³] |
| Burn Time | 9–14 h |
| Thermal Output | 17 MJ/h — 15,290 BTU/h — 4.5 kW |
- These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.
Manufacturer approved surround for the BS EN16647 Compliant XL1200 burner.
Specification & Installation Guide
Need to know all about this product? We have a handy download file with all the information you will need from installation guides to full product specifications.
